Depositing lollipop making equipment

Depositing lollipop making equipment can produce high-quality single color, double color and sandwich lollipop; Various shapes and types of lollipop can also be produced by changing the mold and supporting demoulding device

Full-automatic depositing lollipop making equipment

The production line is manufactured by the company according to the market demand, which can meet the demand for various flavors and varieties of lollipop. It is a kind of equipment for continuous production of burnt sweet.

It can produce high-quality single color, double color and sandwich lollipop; It can also produce various shapes and types of lollipop by changing the mold and supporting the release device. Highly automated production can not only produce products with stable quality, but also save manpower and space to reduce production costs.

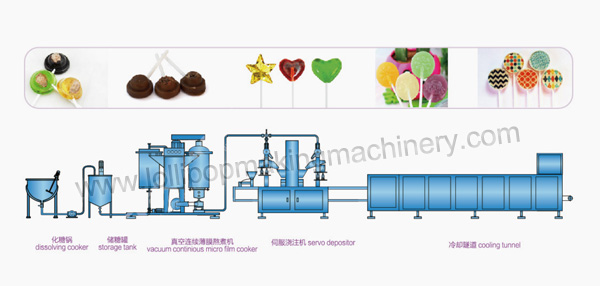

Process flow of lollipop depositing making equipment

Sugar melting pot - sugar storage tank - lollipop boiling pot - depositing machine - cooling tunnel

Main machine of lollipop making equipment

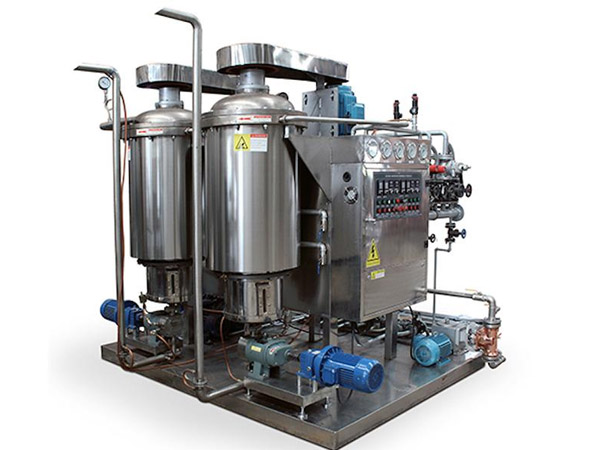

Vacuum sugar boiling machine

Purpose and characteristics:

The unit is made of stainless steel material, and the heating, concentration, pulping, mixing and mixing of traditional inflatable lollipop are reasonably configured by machine, electricity, gas and instrument. It is the equipment for boiling inflatable lollipop. Equipped with computer PLC automatic control device and touch screen operation, its vacuum boiling and aerated mixing can be carried out automatically and alternately. It can be used to boil syrup with high or low inflation, and can also be added with boiling pot to add auxiliary materials such as condensed milk according to demand. This machine has high control accuracy, so the syrup boiled by this machine has good quality. This machine is applicable to the aerated boiling of hard lollipop, nougat, fruit lollipop, cotton lollipop, sugar and other similar lollipop.

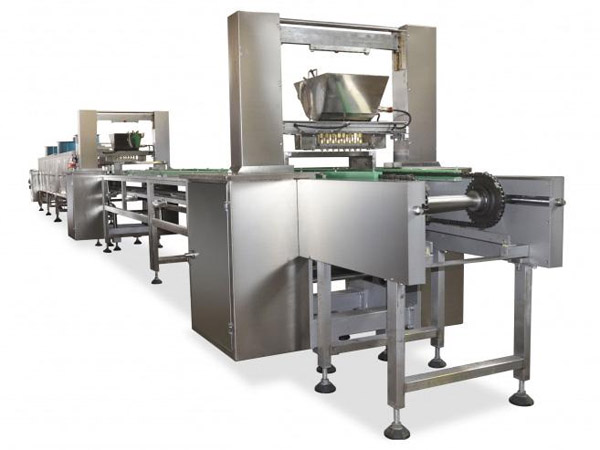

depositing die forming machine.

Main components: conveyor belt, model plate, sugar nozzle, sugar pump, storage tank, cooling device.

Working principle: The role of the sugar pouring pump is to push the sugar paste into the sugar filling mouth, which is made of two cylinders set, the outer cylinder is a fixed cylinder, there is a tank on the side and the storage tank through, and the hole at the bottom is connected with the sugar filling mouth. The inner cylinder is a opening and closing cylinder, and there is a connecting handle in the middle of the inner and outer circumference of the cylinder and a lever that swings from side to side. There is a small hole on the side and at the bottom of the cylinder. When swinging, the small hole at the bottom is closed with the small hole at the bottom of the outer cylinder, and the small hole on the side is connected with the hole of the storage tank, and the small hole on the bottom is connected with the hole on the side of the outer cylinder. There is a piston in the opening and closing cylinder, and when the piston moves up and down, the air can be inhaled, and the Jiang sugar paste is pressed to the sugar mouth. The piston moving distance determines the amount of sugar paste discharge. The piston moving distance can be adjusted according to the size of the sugar block. At the bottom of each pouring pump is a sugar nozzle, which equalizes the number of sugar models.

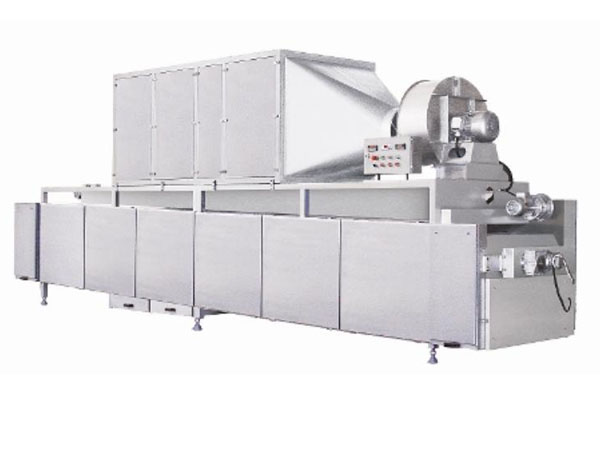

Cooling tunnel

The cooling tunnel is a rapid cooling equipment designed to match the high-yield candy molding production line, such as high-speed stamping machine, etc. It can provide cooling distribution in the cooling tunnel for large quantities of candy. Through the circulation and cooperation of the cooling unit and the conveying system, the candy will not split, deform, overlap, adhere and other phenomena during the rapid cooling process. It is a large quantity candy cooling equipment.

Model: ZY1200T-depositing lollipop making equipment

Output: 1200kg/h

Weight of refined fruit: according to the size of woodcutter

Working environment requirements: temperature 20~25C; Humidity 45%

Pouring speed: 25 - 55n/min

Overall power: 38kW/380V

Length of the whole line: 36m

Total weight: 8500kg

Model: ZY600T-depositing lollipop making equipment

Output: 600kg/h

Weight of refined fruit: according to the size of woodcutter

Working environment requirements: temperature 20~25C; Humidity 45%

Pouring speed: 25 - 55n/min

Overall power: 38kW/380V

Length of the whole line: 22m

Total weight: 6500kg

Model: ZY450T-depositing lollipop making equipment

Output: 450kg/h

Weight of refined fruit: according to the size of woodcutter

Working environment requirements: temperature 20~25C; Humidity 45%

Pouring speed: 25 - 55n/min

Overall power: 34kW/380V

Length of the whole line: 20m

Total weight: 5500kg

Model: ZY300T-depositing lollipop making equipment

Output: 300kg/h

Weight of refined fruit: according to the size of woodcutter

Working environment requirements: temperature 20~25C; Humidity 45%

Pouring speed: 25 - 55n/min

Overall power: 27kW/380V

Length of the whole line: 20m

Total weight: 4500kg

Model: ZY150T-depositing lollipop making equipment

Output: 150kg/h

Weight of refined fruit: according to the size of woodcutter

Working environment requirements: temperature 20~25C; Humidity 45%

Pouring speed: 25 - 55n/min

Overall power: 18kW/380V

Length of the whole line: 18m

Total weight: 3500kg
