Die-forming lollipop making machine

Die-forming lollipop making machine

The die-formed lollipop making machine produces lollipop in a variety of shapes through the use of different molds. It is ideal for candy factories planning to mass produce different  lollipop candy shapes and features a maximum capacity of 50-1200kg.hour.  die-formed  lollipop making machine is equipped with an electric heating cooker to ensure an even PLC controlled heating time and temperature, ensuring the  lollipop is transparent and features a good taste. This advanced  lollipop making equipment effectively reduces material waste. Backed by extensive experience, not only do we offer customized die-formed  lollipop making machines, but we also offer the matched molds.

die-forming lollipop making machine

The making machine can produce various types of die lollipop.

Full-automatic lollipop die making machine can produce all kinds of solid lollipop, sandwich lollipop, special-shaped lollipop, color lollipop and other lollipop

Vacuum continuous saccharification ensures the quality of the cream. The unique molding method makes the sandwich effect good.

The production capacity can reach 200-1200 kilograms per hour. Synchronous automatic control, sandwich, uniform strip and molding. Different shapes of candy can be produced by changing the mold.

The conveying cooling system ensures the cooling effect of candy. It can produce spherical lollipops with automatic bract molding machine.

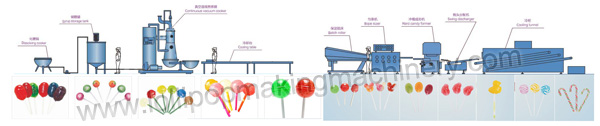

Process flow of automatic die-forming lollipop making machine

Sugar melting - storage tank - vacuum boiling pot - cooling table - conveyor - insulation roller bed - stretching machine - lollipop forming machine - cooling screen - packaging machine

Main machine of die-forming lollipop making machine

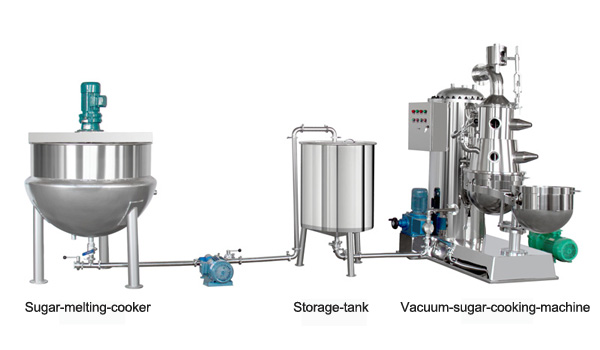

Vacuum sugar cooking machine

It features automatic temperature control, high output, time-saving, short cooking time, and can manufacture the syrup with high transparency.

①.Sugar melting cooker

Batch size(L):300

Weight(kg):280

Dimension(mm):1100*1100*1700

②.Storage tank

Batch size(L):300

Weight(kg):220

Dimension(mm):740*740*1250

③.Technical parameters

Production capacity(kg/h):350-400

Heating area(m³):2.45

Steam pressure(MPa):0.7-1.0

Steam consumption(kg/h):about100

Syrup temperature before entering(°C):110-115

Temperature after discharging(°C):135-145

Power-Fixed displacement pump(kw):0.75

Power-Vacuum pump(kw):5.5

Dimension(mm):1900*1700*2300

Machine weight(kg):800

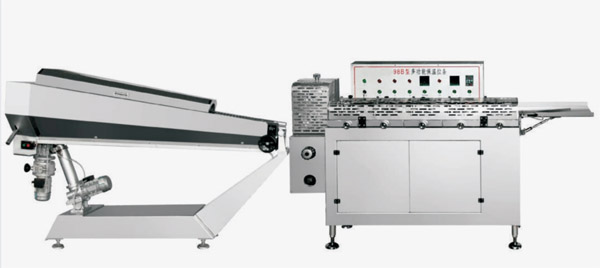

Heat preservation batch roller and rope sizer

Purpose

It is suitable for heat insulation and pulling of sugar pastes.

Feature

It has such features as simple operation, labor saving and high efficiency.

Technical parameters

Batch roller maximum capacity(m³)：0.20

Running speed(m/min):≤40

Total power(kw):7

Weight(kg):850

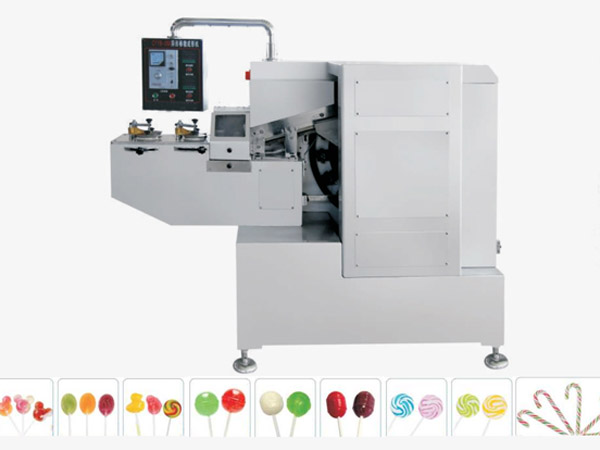

Multi function lollipop forming machine

Purpose

It is suitable for production of lollipop,toffees and filled candy, as well as production of cushions (candy shapes varying according to customer requirements), such as: spherical, oblate, oval and other irregular shapes.

Feature

Punching and forming, stable running, high output

Technical parameters

Production capacity: w250kg/h

Total power: 2.4kw

Weight: 800kg

Dimension: 2000 x 1100 x1300mm

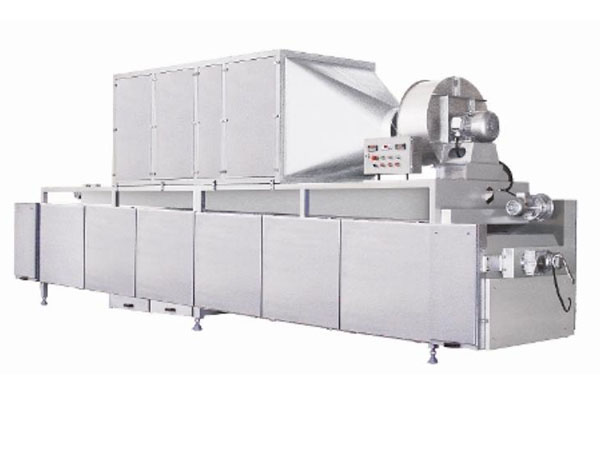

Candy cooling tunnel

The candy cooling tunnel can rapidly reduce the problem temperature of lollipop candy, which is a necessary machine for mass production of lollipop candy

Die-forming lollipop making Machine Working Principle

  Continuous die-forming of lollipop forming: when the sugar billet is cooled to the appropriate temperature, it can be pressed forming. If the temperature is too high, the candy body is too soft, it is difficult to form, even if the molding candy block is easy to stick or deformation, such as the temperature is too low, the candy billet is too hard, the candy granules formed out, easy to produce hair darkening and missing edge broken Angle. The appropriate temperature for die-forming forming is 80-70℃, when the candy billet has the most ideal plasticity, die-forming forming is to use the characteristics of the canyd billet at this temperature, with the drawing machine or artificial candy billet stretching into strips, into the forming machine die-forming forming.

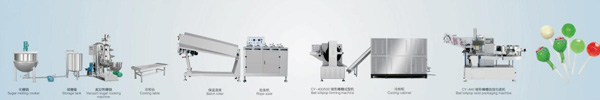

Technological process of Ball lollipop production line

Sugar melting cooker-Storage tank-Vacuum sugar cooking machine-Cooling table-Batch roller-Rope sizer-Ball lollipop forming machine-Cooling cabinet-packaging machine

Technological process of Irregular-shaped lollipop making machine

Sugar melting cooker-Storage tank-Vacuum sugar cooking machine-Cooling table-Batch roller-Rope sizer-Irregular-shaped lollipop forming machine-Conveyor-packaging machine
